Popular Jenn Air Range, Oven and Cooktop
Repair Parts

Where possible, part numbers quoted are those of the manufacturer.
Part sellers frequently use their own catalog numbers to itemize their inventory,
which may not necessarily correspond with the manufacturer's numbers.

Jenn Air range.cooktop Delta-support' surface element burners - 04100166/04100166
'Delta-support' surface elements
04100166 - 8" diameter, 5 coil See a photo of this item!
04100165 - 6" diameter, 4 coil See a photo of this item!

A145A Big Pot/Canning Element
A145A Big Pot/Canning Element
Big Pot/Canning Element
with heavy duty element support See a photo of this item!

Concaved Wok Element
703354 Concaved Wok Element
Concaved Wok Element
with heavy duty element support See a photo of this item!

Flat Bottom Wok Kit
AO142 Wok Kit
'Flat Bottom' Wok Kit
fits any make glass top range See a photo of this item!

High temperature ceramic element surface burner terminal block recepticle kit - 12001676 (700125K) High temperature ceramic
element surface burner
terminal block receptacle kit
12001676 - See a photo of this item!

Jenn Air electric range burner chrome drip bowl - 715878/715877
Chrome drip bowl
8" electric range burner See a photo of this item!
6" electric range burner See a photo of this item!

Jenn Air Range/Cooktop surface burner chrome trim ring - 707453/707454
Chrome trim ring
8" electric range burner See a photo of this item!
6" electric range burner See a photo of this item!

Jenn Air A100/JEA7000ADS  Stainless Steel Cartridge Top Panel
Stainless Steel Cartridge
Top Panel only See a photo of this item!

White button Jenn Air fan switch
Fan switch, rocker style, white

Varies by model

Available from RepairClinic.com

Black downdraft fan switch
Fan switch, rocker style, black
12001129 - 2 terminal See a photo of this item!
71001564 - 3 terminal See a photo of this item!
12200039 - 4 terminal See a photo of this item!

Fan switch, Replaces lighted push button - 12001418 (708285)
Fan switch - 12001418
Replaces lighted push button See a photo of this item!

Jenn Air Range/Cooktop Knob
Knob

Varies by model, design and switch shaft

Available from RepairClinic.com

Grease filter - 6-7/8" x 15-9/16" - 71002111 (715290)
Grease filter - 6-7/8" x 15-9/16"
71002111 - See a photo of this item!

Grease filter - 11-3/8" x 14" - 708929
Grease filter - 11-3/8" x 14"
708929 - See a photo of this item!

Grease filter - 6" diameter - 715526
Grease filter - 6" diameter
715526 - See a photo of this item!

Grill Grate kit, black (set of 2 - 9-1/2
Grill Grate kit, black
(set of 2 - 9-1/2" x 10-3/4")
71002598 - See a photo of this item!

Simulated rock grating for BBQ grill - 708929
Simulated rock grating for grill
708929 - See a photo of this item!

Jenn Air gas cooktop spark electrode - 71002178 replaces 704931
Gas burner spark electrode
71002178 - See a photo of this item!

Female cartridge recepticle contact - 708558
Female cartridge receptacle contact
708558 - See a photo of this item!

Female recepticle contact set - 700004K
Female receptacle contact set (4)
700004K - See a photo of this item!

Jenn Air cartridge male spade terminal - 708572
Male cartridge spade terminal
708572 - See a photo of this item!

Wire mounting screw for above

Infinite heat surface burner switch
Infinite heat burner switch
Varies by model and switch shaft design

Available from RepairClinic.com

Jenn Air range.cooktop solid cast iron surface burner replacements
Solid "euro-style" electric stove burner
Large with chrome trim ring See a photo of this item!
Small with chrome trim ring See a photo of this item!

Jenn Air oven bake element - 715269
Oven bake element - 715269
12-1/4" wide, screw terminals See a photo of this item!

Oven bake element - 7406P012-60
Oven bake element - 7406P012-60
16" wide - push on terminals See a photo of this item!

Oven bake element - 04000041
Oven bake element - 04000041
19" wide - push on ternimals See a photo of this item!

Jenn Air range digital clock
Digital range clock - See a photo of this item!

Jenn Air oven clock/timer
Oven clock/timer assembly - See a photo of this item!

Jenn Air Electric Cook top Repair Manual
Jenn Air Cooktop Repair Manual
Electric CCE/CCS/CVE cooktop service manual

Available in Adobe Acrobat file format Adobe Acrobat file format.

JennAire Electric Slide-in Range Repair Manual
Jenn Air Range Repair Manual
Slide-in SCE/SEG/SVD/SVE Electric/Dual Fuel Range service manual

Available in Adobe Acrobat file format Adobe Acrobat file format

JennAir Gas Wall Oven Repair Manual
Jenn Air Wall Oven Repair Manual
Gas Wall Oven service manual

Available in Adobe Acrobat file format Adobe Acrobat file format

Jenn Air Top-Freezer Refrigerator Repair Manual
Jenn Air Repair Manual
Top-mount Refrigerator service manual

Available in Adobe Acrobat file format Adobe Acrobat file format

Jenn Air Side by Side Refrigerator Repair Manual
Jenn Air Repair Manual
SxS Refrigerator service manual

Available in Adobe Acrobat file format Adobe Acrobat file format

Jenn Air Range and Cooktop
Replacement Cartridges

Jenn Air electric cooktop cartridges come in two styles, the most popular being the Designer Line, the other Expressions® series. The notable difference between the two are the terminal locations for the plugin receptacle. The Designer Line cartridges have the terminals located at the narrow cartridge end while the Expressions® models are located at the cartridge side.

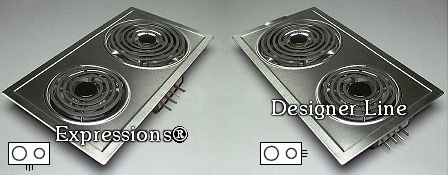

Illustrates the difference between Designer Line and Expressions cook top cartridges

Basically, all Jenn Air cartridges of the same design are interchangeable. Older ranges/cooktops that used cartridges with 4 flat blade plug-in terminals will require the appliance's cartridge receptacle wiring modified or a newer 3 terminal cartridge to be adapted by the adding of a forth terminal and its wiring altered before it be able to be used on such older appliances. Older 3 terminal cartridges should be able to be replaced with newer 3 blade cartridges without any modifications.

Illustration of 3-terminal cartridge end

Replacement Jenn Air cartridges usually start at around $150.00 but very greatly depending on the cartridge design and element style.


Conventional Coil Cartridge, Stainless Steel
Conventional Coil Cartridge
- A100 - JEA7000ADS
Designer Line - Stainless Steel See a photo of this item!

Conventional Coil Cartridge, Black finish
Conventional Coil Cartridge
- A100B - JEA7000ADB
Designer Line - Black finish See a photo of this item!

Conventional Coil Cartridge, White finish
Conventional Coil Cartridge
- A100W - JEA7000ADW
Designer Line - White finish See a photo of this item!

Conventional Coil Cartridge, 4 TERMINAL - for older models
Stainless Steel Cartridge
*4 Terminal*
Designer Line - 4 Terminal See a photo of this item!

For older models - No range or cartridge rewiring required

Solid Element Cartridge A105 A105W
Solid Element Cartridge - A105
*Discontinued* Repair original using:

Glass Top, Black (A105)
Glass Top, White (A105W)
Small "Euro-style" Element
Large "Euro-style" Element
Small Element Trim Ring
Large Element Trim Ring
Small Element Trim Ring (A105W)
Large Element Trim Ring (A105W)
Male cartridge spade terminal

Solid Element Cartridge  A100B A106W
Solid Element Cartridge - A106
*Discontinued* Repair original using:

Glass Top, Black (A106B)
Glass Top, White (A106W)
Small "Euro-style" Element
Large "Euro-style" Element
Male cartridge spade terminal

Glass Top Element Cartridge A110 A110-8 A111 A111-8
Glass Top Cartridge -
    A110   A111   A110-8   A111-8
*Discontinued*
Repair original using the following components or select comparable replacement cartridge

Glass Top, Black
Glass Top, White NLA
Element Block, lg. & sm. 240 volt
Element Block, lg. & sm. 208 volt NLA
Male cartridge spade terminal

Glass Top Element Cartridge A120 A120-8
Glass Top Cartridge - A120 A120-8
*Discontinued*
Repair original using the following components or select comparable replacement cartridge

Glass Top, Black
Small Element Block, 240 volt
Large Element Block, 240 volt
Male cartridge spade terminal



Glass Top Element Cartridge A121 A121B A121W A121B-8 A121W-8
Glass Top Cartridge - A121 A121B A121W
*Discontinued*
Repair original using the following components or select comparable replacement cartridge

Glass Top, Black
Glass Top, White frame
Small Radiant Element, 240 volt #
Large Radiant Element, 240 volt #
A120-8 Small Element, 208 volt #
A120-8 Large Element, 208 volt #
Male cartridge spade terminal

  #includes thermal limiter
  (not available separately)

Radiant Element Cartridge - Designer Line. White frame.
Radiant Element Cartridge
- A122W - JEA8120ADW
Designer Line with white frame. See a photo of this item!

Radiant Element Cartridge - Black
Radiant Element Cartridge
- A122B - JEA8120ADB
Designer Line - Black See a photo of this item!

Halogen Element Cartridge - A125 A125B
Glass Top Halogen Element Cartridge A125 A125B
*Discontinued*
Repair original using the following components or select comparable replacement cartridge

Glass Top & Frame, Black
Small Halogen Element #
Large Halogen Element #
Male cartridge spade terminal

  #includes thermal limiter
  (not available separately)

Halogen Cartridge - A126 A126B A126W
Glass Top Halogen Element Cartridge A126 A126B A126W
*Discontinued*
Repair original using the following components or select comparable replacement cartridge

Glass Top & Frame, Black
Glass Top & Frame, White
Small Halogen Element #
Large Halogen Element #
Male cartridge spade terminal

  #includes thermal limiter
  (not available separately)

Expressions® Solid Element Cartridge
- AS130 AS131
Expressions Solid Element Cartridge AS130 AS130B AS130W AS131 AS131B AS131W
*Discontinued* Repair original using:

Glass Top, Black (AS130-B AS131-B)
Glass Top, White (AS130-W AS131-W)
Small "Euro-style" Solid Element (AS130)
Large "Euro-style" Solid Element (AS130)
Small Solid Element w/ring (AS131)
Large Solid Element w/ring (AS131)
Small Element Trim Ring, Black (AS130B)
Large Element Trim Ring, Black (AS130B)
Small Element Trim Ring, White (AS130W)
Large Element Trim Ring, White (AS130W)
Sensor, Glass Protector
Male cartridge spade terminal

Expressions® Radiant Element Cartridge
- A140 A140B A140B-8 AR140W
Glass Top Radient Element Cartridge A140 A140B A140B-8 AR140W
*Discontinued*
Repair original using the following components or select comparable replacement cartridge

Glass Top & Frame, Black
Glass Top & Frame, White
Small Radiant Element #
Large Radiant Element #
Small Element (208 volts) #
Large Element (208 volts) #
Male cartridge spade terminal

  #includes thermal limiter
  (not available separately)

Black Halogen Smoothtop Cartridge
Halogen Smoothtop Cartridge - AR141B
Expressions® Black See a photo of this item!

White Halogen Smoothtop Cartridge
Halogen Smoothtop Cartridge - AR141W
Expressions® White See a photo of this item!

Expressions® Halogen Cartridge
- AH150 AH150B AH150W
Glass Top Halogen Element Cartridge AH150 AH150B AH150W
*Discontinued*
Repair original using the following components or select comparable replacement cartridge

Glass Top & Frame, Black NLA
Glass Top & Frame, White
Small Halogen Element #
Large Halogen Element #
Male cartridge spade terminal

  #includes thermal limiter
  (not available separately)

Expressions® Conventional Coil Cartridge
Conventional Coil Cartridge - AC110
Expressions® - AC110W White finish See a photo of this item!
Expressions® - AC110B Black finish See a photo of this item!


Energy Saver Electric Grill Cartridge
Electric Grill Cartridge
- A158 - JEA8000ADB
Designer Line See a photo of this item!
Excalibur nonstick grill grate finish

Gas Two-Burner Module Cartridge
Two-Burner Gas Cartridge
- AG202MG - JGA8100ADW
Designer Line - White See a photo of this item!
with matte gray porcelain grates.

Gas Two-Burner Module Cartridge - Black
Two-Burner Gas Cartridge
- AG202MB - JGA8100ADB
Designer Line - Black on Black See a photo of this item!

Specialty Cleaners and Care Items


'Cooktop' Glass and Ceran Top Cleaner
'Cooktop' glass top cleaner
20000001 - 10 oz See a photo of this item!
20001070 - 20 oz See a photo of this item!

Stainless Steel Cleaner
Stainless Steel Cleaner - See a photo of this item!


Collo Electrol Solid Element Conditioner, Cleaner and Polish
Collo Electrol Solid Element Conditioner
20000007 - See a photo of this item!

The items illustrated above are not offered for sale through or by Appliance411.com
This information is presented for illustrative, reference and advertising purposes only.

Graphics Copyright 2001 RepairClinic or Appliance411.com, All Rights Reserved.
Reprinted with permission.


Return to the Appliance411 Home Page
 Appliance411 Home

The Purchase | Home Service | Repair Parts | Q&A Forum | Appliance Links
News | Sponsorship and Advertising | Contact Us | Privacy
Refer this Page | Support Appliance411 new

Copyright © Daniel O'Neill 1997-2014. All rights reserved.

Web site designed and maintained by Dan O'Neill

Jenn Air Parts
